Products >> BALL VALVE >> 2PCS TYPE CONSTRUCTION BALL VALVE

  • 2PC TYPE FORGED STEEL BALL VALVE

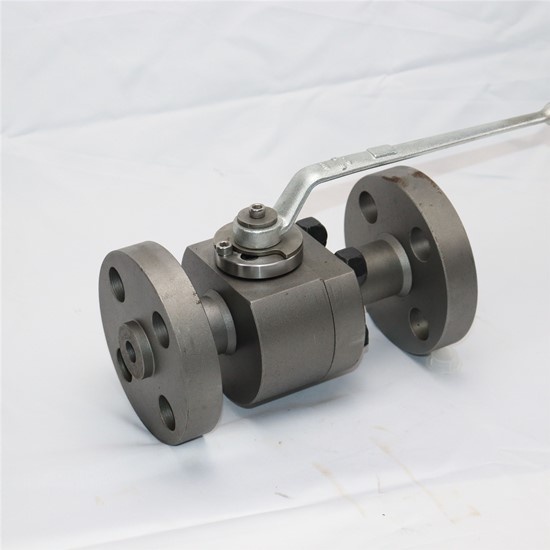

2PC TYPE FORGED STEEL BALL VALVE

2PC TYPE FORGED STEEL BALL VALVE

  • Product No.：2022521163120
  • PRESSURE AVAIALBLE：600LB
  • SIZE AVAILABLE：1"
  • MATERIAL AVAILABLE：A105
  • WORKING TEMPERATURE：-29-220℃
  • CONNECT END：RAISED FACE FLANGE
  • Online Inquiry
 2PCS FLOATING REDUCE BORE BALL VALVE
  • SIZE AVAILABLE：1/2"-6"
  • MATERIAL AVAILABLE：A105/F304/F316/F51/LF2
  • WORKING TEMPERATURE：-29~220℃
  • CONNECT END：RAISED FACE/RTJ
  • SEAT MATERIAL AVAILABLE:PTFE/RPTFE/DEVLON/CPTFE
  • Applicable standards
  • STEEL BALL VALVE API6D/API608 ISO10434/ISO 14313
  • FIRE DURABLE API607
  • FACE TO FACE LEGTH:ANSI B16.10
  • FLANGE:ANSI B16.5
  • VALVE INSPECTION AND TEST CONFORM TO API598.
  • Detail description:
  • REDUCE PORT DESIGN
  • BB,BOLTED BONNET,SPLIT BODY
  • FLOATING BALL TYPE
  • BLOW-OUT PROOF STEM
  • FIRE DUARABLE CONSTRUCTION AND ANTI STATIC DESIGN

Next Product：2PC BALL VALVE 5000PSI
